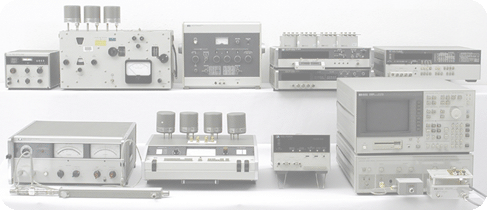

LCR Meters - Component Test
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
16470A RF 1971 59 - Set of 20 Reference Inductors for 4342A "Q" Meter - 130mH to 1uH
250B RF 1968 263 - RX Meter - 500kHz to 250MHz in 8 Bands -R 15 to 100K-C 0 to 20pF-L 1nH to 100mH
260A RF 1969 259 - Q Meter - 50kHz to 50MHz in 8 bands - Q Range 10 to 625 - (BOONTON Q Meter HP Re-styled in 1969)
4191A UHF 1980 100 1980 01 RF Impedance Analyzer 1 to 1000MHz @ 100kHz steps - 4 1/2 Digits Res - 14 Parms
41951A UHF 1988 229 - Impedance Test Kit for 4195A - 100kHz to 500MHz - |Z|, |Y|, L, C, R, X, G, B, D, and Q
4195A UHF 1988 226 - Combined Network/Spectrum Analyzer 10Hz to 500MHz - Component Test with 41951A
4260A RF 1966 7 1966 09 LCR Meter Analog. 1pF to 1000uF, 1uH to 1000H, 1mOhm to 1MOhm, all in 7 Ranges
4261A RF 1977 79 1976 09 LCR Meter Digital 1kHz Automatic - ,1 pF to 19mF - ,1µH to 1900H - 1m to 19MOhms
4262A RF 1978 80 1977 12 LCR Meter Digital 1-10 kHz - CD/CQ Measurmt.
4265A RF 1973 62 - Universal Bridge 1kHz L/1µH-1111H C/1pF-1111µF R/,1mOhm-1MOhm
4271A RF 1973 65 1974 03 LCR Meter Digital High Res. - 1 MHz
4272A RF 1977 83 - C Meter Digital 10 to 2000 pF F.S. - 1 MHz
4274A RF 1979 94 1979 02 LCR Meter - 100Hz to 100KHz - 5 1/2 digits Display - L, C-D, Q, ESR, G, |Z|, R-X
4276A VLF 1983 108 1983 07 LCZ Meter - 100Hz to 20kHz - 4 1/2 digits Display - L, C-D, Q, ESR, G, |Z|
4278A RF 1987 226 - Capacitance Meter - 6 Digits - 1kHz/1MHz - ,01 fF to 1280 pF - C, D, Q, ESR, G Measurmt.
4279A RF 1988 292 - C-V Meter - Same as 4278A Plus Built-In programbl. DC Bias Sweep Source with 0,1% accuracy
4332A RF 1972 50 - LCR Meter Analog - in 12 Ranges FS: R=3Ohms to 1M - L=3µH to 1H - C=3pF to 1µF - 1VDC Analog Out
4342A RF 1971 58 1970 09 Q Meter - 22kHz to 70MHz - 90nH to 1,2H - Q Direct Reading 1 to 1000

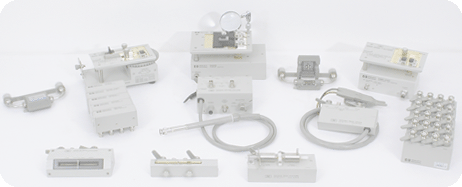

Test Fixtures
MODEL RANGE INTRO Pg HP-JRNAL COMMENTS
11600A MW 1969 476 1969 01 Transistor Fixture for TO18/TO72 packages - S Parms Caracterisation DC to 2GHz
11602A MW 1969 476 1969 01 Transistor Fixture for TO5/TO12 packages - S Parms Caracterisation DC to 2GHz
11608A MW 1971 73 - Transistor Fixture for Micro-stripline Packages - S Parms Caracterization DC to 12,4GHz
16008A DC 1969 223 - Resistivity Cell for 4329A High Resistance Meter - Volume & Surface Resist of Material Up to 10E18 Ohms
16015A RF

- Test Fixture with Reset Button for 4270A Capacitance Bridge
16021A RF 1978 89 - Calibration Connector for 4271A LCR Meter and 4272A Preset C Meter
16022A RF 1977 83 - General Purpose Test Fixture for 4271A LCR Meter and 4272A Preset C Meter
16023B RF 1985 209 - DC Bias Controller for 4274A - 4275A - Control Range +/- 99,9 Volts thumbwheel Switch Setting
16034E VHF 1988 277 - Chip Type & SMD Components Test Fixture for 419X & 427X LCR Meter - 4 Wire BNC
16047A RF 1982 113 - Direct Coupled Test Fixture for 4192A & 427X LCR Meter - 4 Wire BNC
16047C VHF 1981 113 - 2 Terminal Test Fixture 4192A & 427X LCR Meter - 4 Wire BNC
16048C RF 1985 209 - Kelvin Alligator Clips Test Fixture for 427X LCR Meter - 4 Wire BNC
16054A DC 1980 99 - Connection Selector for 4140X pA Meter
16055A DC 1980 99 - Test Fixture with Shielded Cover for 4140X pA Meter
16057A DC 1980? - - Switching Module for 4140X pA Meter & 427X LCR Meter
16061A RF 1981 99 - Five Terminal Test Fixture for 4261A Digital LCR Meter - Inserts for Axial or Perpendicular Leads
16085B VHF ?

- Terminal Adapter - 4 Wire BNC to APC7
16091A UHF 1980 101 1980 01 Coaxial Fixture Set for Components Measurement with 4191A & 4195A Network
16092A UHF 1980 101 1980 01 Spring Clip Test Fixture for Components Measurement with 4191A & 4195A Network
16093A VHF 1980 101 1980 01 Binding Post Fixture for Components Measurement with 4191A & 4195A Network
16099A RF 1982 119 - Test Fixture Adapter for 4193A or 4815A Probe to APC-7 Connector (Socket for 16092A Fixt)
16192A VHF 1994 357 - Parallel Electrode SMD Components Test Fixture for 419X Network
